You are here.... Home Swann Morton SM Blades and Handles

Swann Morton SM Blades and Handles Range

No12 Blade

A heavy duty metal retractable knife with a choice of blades 01, 02, 03 and 04



Blades

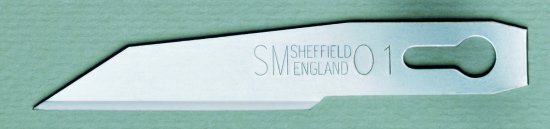

Swann Morton SM 01 Blades Box of 50 4211

SM01

The SM 01 Blades are available in a packs of 5 Blades or Boxes of 50 individually wrapped in VPI paper   Material: Carbon Steel Overall Length 60mm Width 10.96mm Thickness 0.63mm Cutting edge 34mm   All measurements are for guidance only.

Swann Morton SM 02 Blades Box of 50 4212 / 4232

SM02

The SM 02 Blades are available in a packs of 5 Blades or Boxes of 50 individually wrapped in VPI paper The Pack of 5's have been discontued. Limited Stock Avaliable Material: Carbon Steel Overall Length 43mm Width 8.94mm Thickness 0.63mm Cutting edge 13mm   All measurements are for guidance only.

Swann Morton SM 03 Blades Box of 50 4213 / 4233

SM03

The SM 03 Blades are available in a packs of 5 Blades or Boxes of 50 individually wrapped in VPI paper The Pack of 5's have been discontued. Limited Stock Avaliable   Material: Carbon Steel Overall Length 52mm Width 8.94mm Thickness 0.63mm Cutting edge 18mm   All measurements are for guidance only.

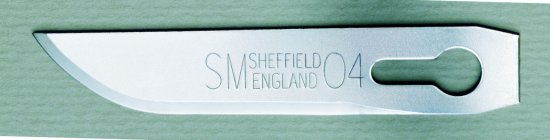

Swann Morton SM 04 Blades Box of 50 4214 / 4234

SM04

The SM 04 Blades are available in a packs of 5 Blades or Boxes of 50 individually wrapped in VPI paper The Pack of 5's have been discontued. Limited Stock Avaliable Material: Carbon Steel Overall Length 50mm Width 8.94mm Thickness 0.63mm Cutting edge  32mm   All measurements are for guidance only.

Swann Morton SM 01B Blades Box of 50 4252

SM01B

Carton of 50 individually wrapped in VPI paper   Material: Carbon Steel Overall Length 56mm Width 10.73mm Thickness 0.63mm Cutting edge 28mm   All measurements are for guidance only.

Swann Morton SM 03B Blades Box of 50 4253

SM03B

Carton of 50 individually wrapped in VPI paper   Material: Carbon Steel Overall Length 49mm Width 9mm Thickness 0.63mm Cutting edge 14mm   All measurements are for guidance only.

Handles

Swann Morton SMORII Retractable Handle 4307 With 2x SM01 Blade



This SMORII handle is supplied with two SM01 Blades. The Handle, designed by Swann Morton, features a forward position to assist with easy blade fitment and removal along with audible clicks to indicate the mid usage position and the rear safe position for when the knife is not in use.     Can also be used with the SM01, SM01B, SM02, SM03, SM03B and SM04 blades.     Handle length without blade fitted 154mm, width 25.8mm, thickness 13.3mm   All measurements are for guidance only.

Swann Morton SMORII Retractable Handle Ref 4308 without Blades

SMORII Handle with 2 Blades

The SMOR II retractable is sold without Blades. The Handle, designed by Swann Morton, features a forward position to assist with easy blade fitment and removal along with audible clicks to indicate the mid usage position and the rear safe position for when the knife is not in use.     Can also be used with the SM01, SM01B, SM02, SM03, SM03B and SM04 blades.     Handle length without blade fitted 154mm, width 25.8mm, thickness 13.3mm   All measurements are for guidance only.

SM00 Fixed Handle Swann Morton Product No 4302

SM00 Fixed Handle Swann Morton Product No 4302

The SM00 is a heavy-duty cast metal handle for industrial applications though will also be of interest to the D.I.Y. enthusiast for those tougher jobs.   The 4302 is supplied with no Blades.   Handle length 123mm, width 19mm, thickness 9.5mm.   The handle can be opened with a screwdriver for blade changing.   There is a choice of 4 heavy-duty blades: SM01, SM02, SM03 and SM04.   There are also bull-nose versions of the SM01 and SM03.

SMO-R Handle Swann Morton Product No 4303

SMO-R Handle Swann Morton Product No 4303

The SM0-R is a heavy-duty cast metal handle with retractable blade mechanism for industrial applications though will also be of interest to the D.I.Y. enthusiast for those tougher jobs.   The 4303 is supplied with no Blades   Handle length 125mm, width 18mm, thickness 14.25mm.   The handle can be opened by hand for blade changing.   It has the added safety advantage of a retractable blade mechanism   There is a choice of 4 heavy-duty blades: SM01, SM02, SM03 and SM04.   There are also bull-nose versions of the SM01 and SM03.
